2-5747707-0
Manufacturer:
TE Connectivity
Mfr.Part #:
2-5747707-0
Datasheet:
Description:

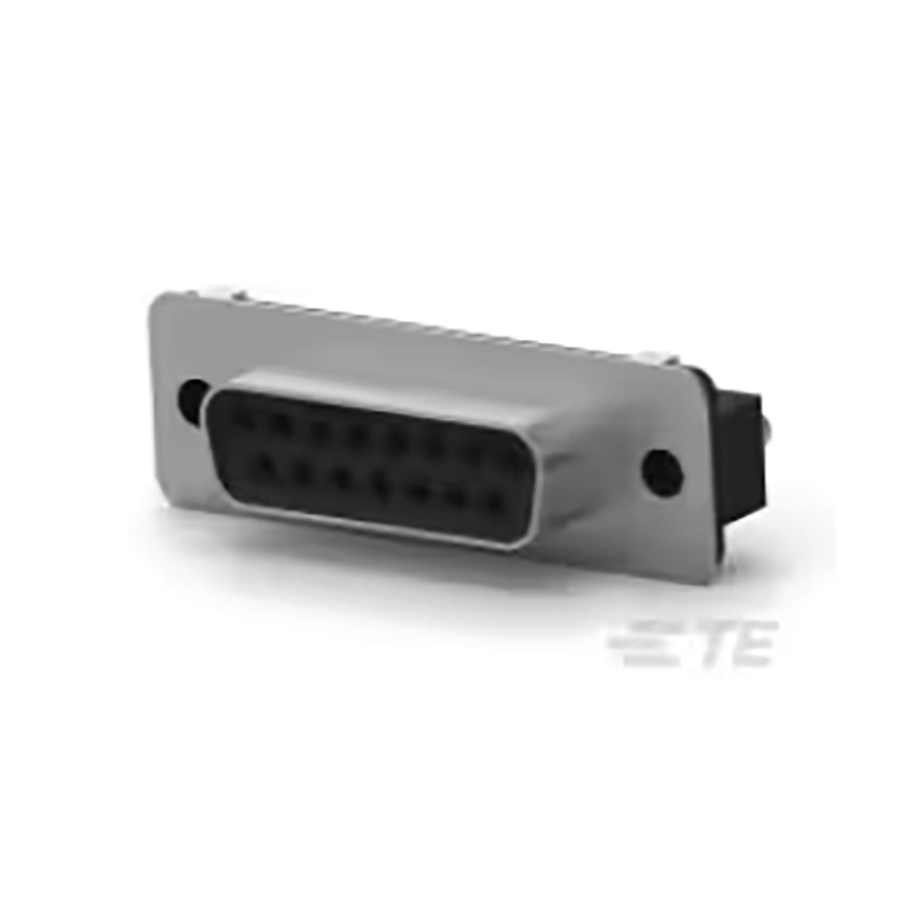

D-Sub Connectors Through Hole Receptacle Number of Positions:15 Solder Receptacle
| Parameter | Value |
|---|---|
| Length | 39.14 mm |
| Width | 12.5476 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 15 |
| Material | Metal |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 12.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.74 mm |
| Type | Receptacle |
| Number of Terminals | 15 |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 15 |
| ELV | Compliant |
| Body Material | Steel |
| Hole Diameter | 3.0734 mm |
| Max Supply Voltage (DC) | 250 V |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 3803
Distributors
pcbx
pcbxUnit Price$3.92284
Ext.Price$3.92284
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.92284 | $3.92284 |
| 10 | $3.62494 | $36.24940 |
| 25 | $3.34966 | $83.74150 |
| 50 | $3.09529 | $154.76450 |
| 100 | $2.86024 | $286.02400 |
| 300 | $2.64304 | $792.91200 |
| 500 | $2.44233 | $1221.16500 |
| 1000 | $2.25687 | $2256.87000 |
